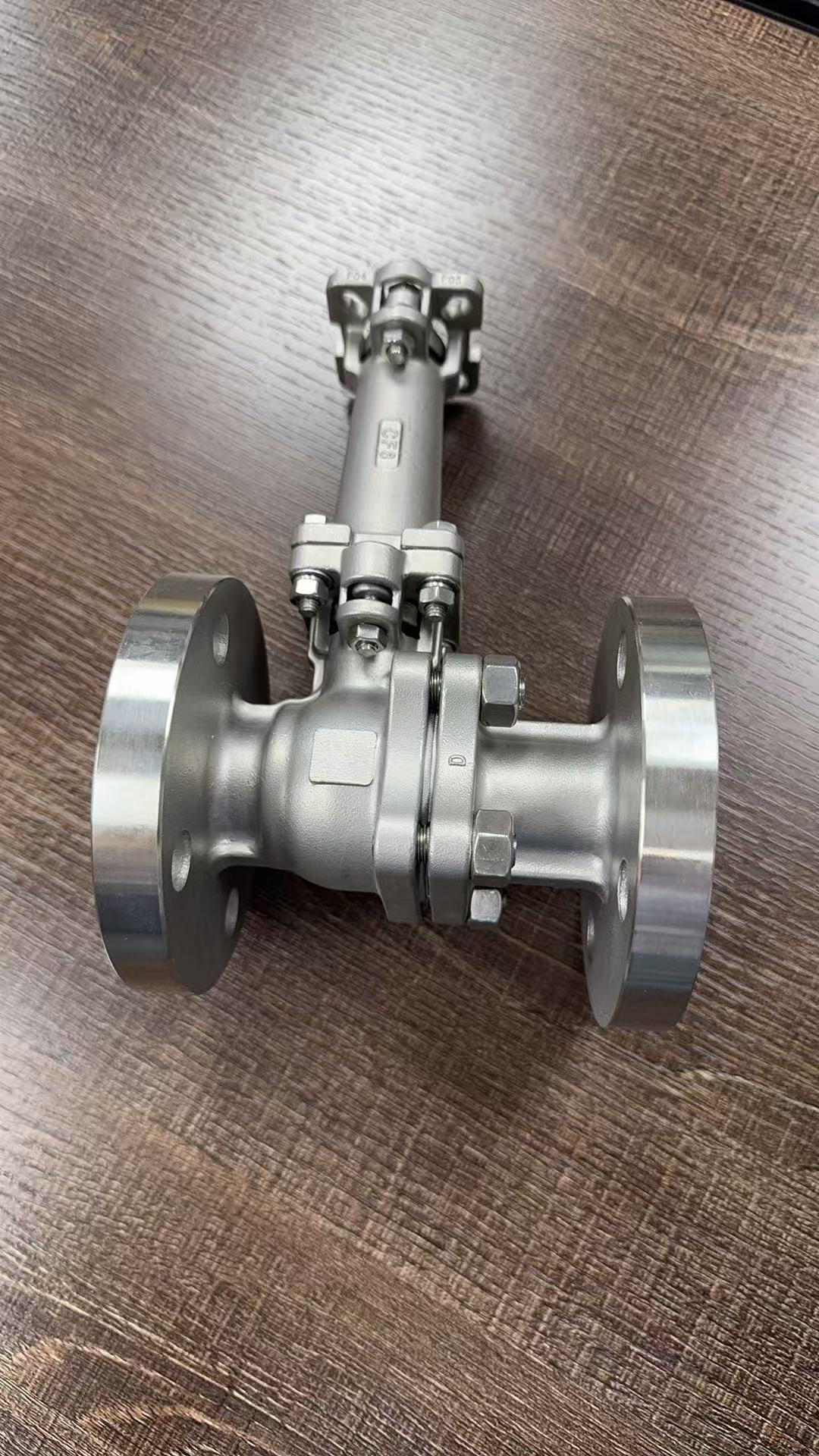

DN25 316L Two Piece Ball Valve Flange Connection High Temperature ISO High Platform

DN25 316L two-piece ball valve flange connection with high temperature and ISO high platform

1. Description:

Flange high temeperature ball valve is widely used in petroleum refining, long-distance pipeline, chemical industry, paper making, pharmaceutical, water, power, municipal, steel and other industries, high pressure ball valve is mainly used to cut off or connect the medium in the pipeline, can also be used for fluid regulation and control, among which the hard sealed V-shaped ball valve has a strong shear force between the V-shaped core and the surfacing cemented carbide metal seat.

Especially suitable for fiber, small solid particles and other media. The multi-pass ball valve can not only flexibly control the confluence, shunt, and flow direction of the medium on the pipeline, but also can close any channel and make the other two channels connected. This type of valve should generally be installed horizontally in the pipeline.

2. Specification:

3. Features:

• Fluid resistance is small, and the full-diameter ball valve has basically no flow resistance.
• Simple structure, small size, light weight.
• Tight and reliable. It has two sealing surfaces, and the sealing surface material of the ball valve is widely used in various plastics, which has good sealing property and can achieve complete sealing. It has also been widely used in vacuum systems.
• Easy to operate, open and close quickly, from full open to full close as long as the rotation of 90 degrees, easy to remote control.
• Easy maintenance, ball valve structure is simple, the sealing ring is generally active, disassembly and replacement are more convenient.
• When fully open or fully closed, the sealing surface of the ball and the seat is isolated from the medium, and the medium will not cause erosion of the valve sealing surface when it passes through. Seven.
• Wide range of application, small diameter to a few millimeters, large to a few meters, from high vacuum to high pressure can be applied.
• Because the ball valve has wipeability during opening and closing, it can be used in media with suspended solid particles.

DN25 316L two-piece ball valve

Flange Connection two piece ball valve

High Temperature two piece ball valve
